Overview
Versa Drives offers a compact automatic door operator drive built around a matched 90 W Permanent Magnet Synchronous Motor (PMSM) and controller. This integrated motor–drive set is designed for:
- Elevator car doors and landing doors in vertical transport systems
- Automatic sliding doors in hospitals, commercial buildings and cleanrooms
- Other automatic doors within the torque and speed range of the 90 W PMSM kit
The controller runs from a single-phase 200–264 V AC, 50 Hz supply and uses encoder-based vector control to deliver smooth, quiet motion, precise positioning and repeatable open/close profiles. OEMs can use this as a ready platform for new door systems or to replace older motor–drive solutions with a more efficient PMSM-based alternative.
Key Features
- Integrated solution: 90 W PMSM motor with matching controller, designed as a single door-operator platform.
- Single-phase input: 200–264 V AC, 50 Hz input for easy installation in standard building electrical systems.
- Encoder-based vector control: closed-loop vector control with incremental encoder feedback for accurate speed and position control at low speeds.
- Door-specific protections and safety: extensive electrical and motion protections, including braking support on power fail.
- Encoder interface: compatible with three-channel incremental encoders and PWM output for rotor position within one revolution.
- Flexible I/O: opto-isolated logic inputs and outputs for open/close commands, interlocks and status indications.
- Compact footprint: suitable for mounting inside door headers and compact control panels.
- Designed for OEM integration: intended for elevator OEMs, door-system integrators and vertical-transport solution providers.

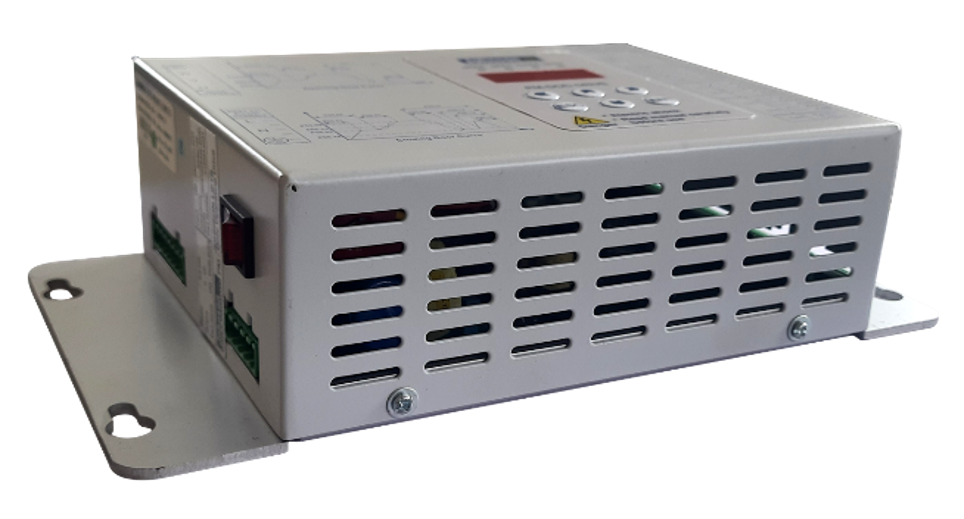

Technical Specifications – Drive
| Parameter | Description |
|---|---|
| Input voltage | Single-phase 200–264 V AC |
| Input frequency | 50 Hz |
| Control method | Vector control with sensor (encoder feedback) |
| Encoder interface | 3-channel incremental encoder; 1 PWM signal input for rotor position information within one revolution |
| Maximum encoder pulse frequency | 125 kHz |
| Logic inputs | 4 opto-isolated logic inputs (open, close, direction, speed selection, interlocks, etc.) |
| Logic outputs | 4 logic outputs for status indication (door open/closed, fault, ready, etc.) |
| Relay output | Relay provided to short motor windings for braking PMSM on power fail |
| Auxiliary supply | Isolated 18 V DC, 100 mA output for potential-free contact sensing |
| User interface | 5-digit seven-segment LED display with tactile switch keyboard |
| LED indication | Power ON and Fault status LEDs |
| Operating mounting position | Vertical |
| Ambient temperature | 0 to 45 °C |
| Humidity | Up to 90% RH, non-condensing |
| EMI filter | Built-in single-phase EMI filter for 230 V AC supply |
| Electrical protections | Over-voltage, under-voltage, over-current, overload, output short-circuit, over-temperature, encoder feedback loss, over-speed, torque limiting |
| Mechanical / safety features | Designed to support fail-safe braking and safe stop behaviour when paired with appropriate mechanical braking systems |

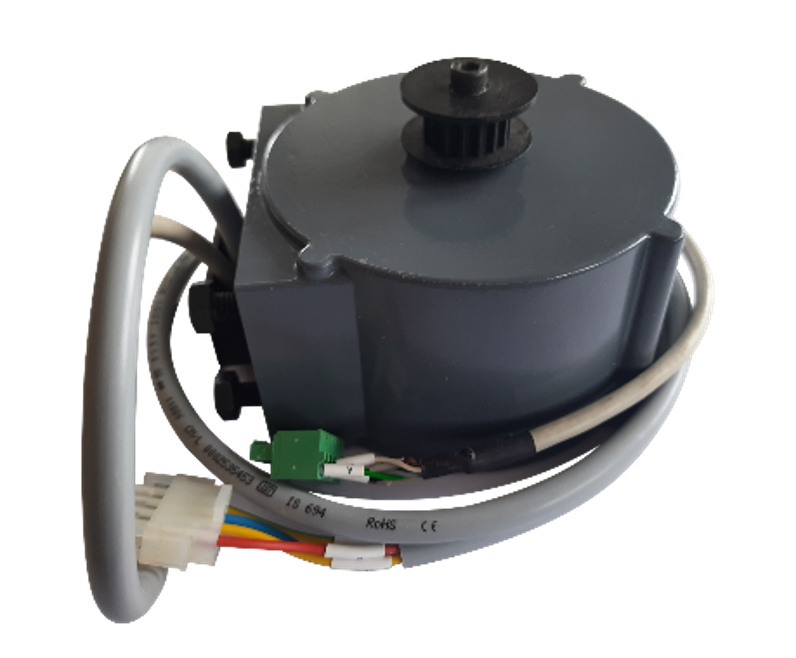

Technical Specifications – PMSM Motor
| Parameter | Description |
|---|---|
| Motor type | Permanent Magnet Synchronous Motor (PMSM) |
| Number of poles | 8-pole design for high torque at low speed |
| Input voltage (from drive) | 3-phase 125–195 V AC (nominal) |
| Input current | ~0.32–0.85 A (application dependent) |
| Output power | ~47–90 W |
| Rated speed | ~195 rpm (typical door operator speed range) |
| Rated torque | ~2.3–4.5 Nm (typical elevator and sliding-door mechanisms) |
| Insulation class | Class F |
| Motor enclosure | Completely enclosed construction suitable for indoor door-header mounting |
| Cooling | Natural cooling (no external fan required) within specified ambient |
Technical Specifications – Encoder
| Parameter | Description |
|---|---|
| Encoder type | Magnetic incremental encoder integrated into motor housing |
| Resolution | 1024 pulses per revolution (ppr) |
| Supply voltage | 12–24 V DC |
| Supply current | ~40 mA |
| Output signals | Incremental channels A, B, Index (I) + PWM output with absolute rotor position within one revolution |
| Mounting | Integrated with PMSM motor shaft and housing for compact assembly |
Applications
- Elevator car doors and hoistway/landing doors in residential, commercial and institutional buildings
- Automatic sliding doors in hospitals, ICU/OT entries, cleanrooms and labs
- Glass and aluminium sliding doors at retail storefronts and office entrances
- Light industrial and warehouse sliding doors within the power/torque range of the 90 W PMSM kit
- Other specialised door or barrier systems requiring controlled speed profiles and accurate stopping
Integration with Door Controllers
- Opto-isolated inputs accept commands such as Open, Close, Stop, Direction and speed mode.
- Logic outputs provide status feedback for door position and fault conditions to the main controller.
- Encoder feedback supports accurate speed profiling and soft landing at open/closed positions.
- Braking relay output allows the PMSM to be electrically braked in power-fail conditions (with appropriate mechanical design).
- Built-in protections and diagnostics simplify certification and compliance (when integrated into a complete system).
Enquiry Note
If you are interested, please share a few lines about your product, motor rating and supply voltage. We will review your requirement, map it to the closest Versa motor–drive platform and get back to you with next steps.
